Do slip 2" bulkheads exist?

[Armando]

I looked everywhere but can't find it.

I need a 2" bulkhead that is slip, not threaded. I can only find threaded. Reason is, I need to connect a ball valve that is slip, and I have a very limited amount of space, there's no space to add adapters from one to another. I also thought about getting a threaded balvalve and connecting it to the bulkhead with a nipple. No luck, there's no 2" union valve that is threaded.

As a last resort, I'm thinking about dremelling the bulkhead threads to slip the pipe in, is this a bad idea?



[Corwyn]

Armondo,

I am pretty sure the US Plastic has them, but it's been a while.


Corwyn



[NateHanson]

I thought I saw them in Savco last night.

And I'd say yes, dremeling the threads probably wouldn't create a good enough gluing surface.



[NateHanson]

This bulkhead at Savko is Slip*Thread. Not sure which side is threaded, do you? You could just invert the bulkhead though, couldn't you? That would save even more space if you put the flange on the outside of the tank, and the nut on the inside, assuming you have the space inside the tank. The bulkhead will seal fine either way, just keep the rubber gasket and the flange on the same side.



[Armando]

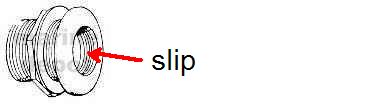

Nate the slip side on that bulkhead is not the one I indicated on the picture



[Jim Tansey]

McMaster-Carr 2 inch NPT gray PVC bulkhead with slip per your dwg. #36895k116. Note this fitting is for 2 inch pipe as you asked for, not 2 inch O.D. tube.

Jim



[Armando]

Great!!!! thank you.



[Armando]

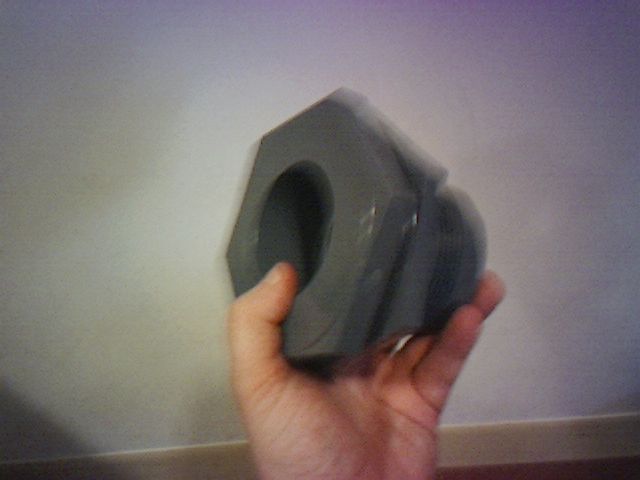

just got the bulkhead. this thing is HUGE!



[Liam]

Are you installing a new toilet Armando?



[Jim Tansey]

I must admit I wondered if you really ment 2 inch pipe, is that what you wanted?

Jim



[Armando]

yes, that's exactly what i was looking for, thank you for finding it for me
